Overview

The Adapter X6 to Dual X3 is designed to convert the 128-channel input interface of the X6 headstage into two independent 64-channel X3 input ports. This enables full compatibility with existing X3-series accessories, probes, EIBs, and adapter modules.
The adapter preserves signal integrity through matched routing, ensuring that recording performance remains consistent with native X3 headstage configurations.

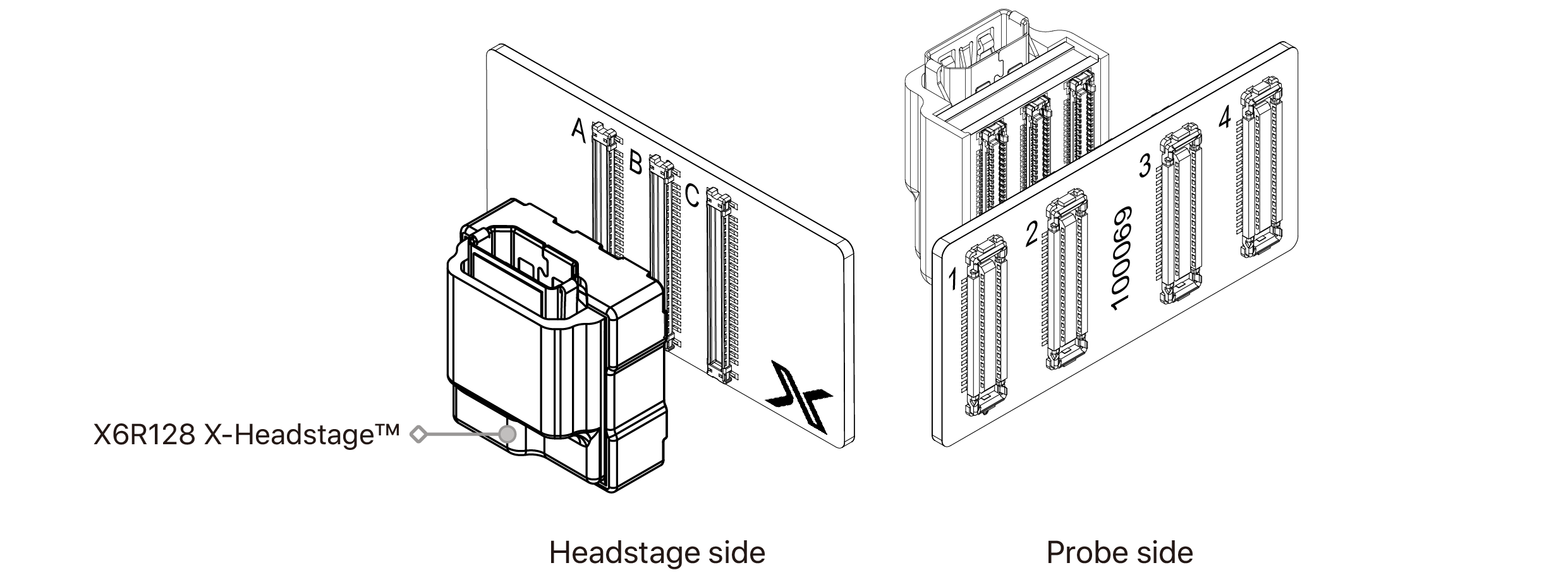

Adpt- X6 to X3 Overview

text1




Dimension and weight

text1

Weight 1.2g

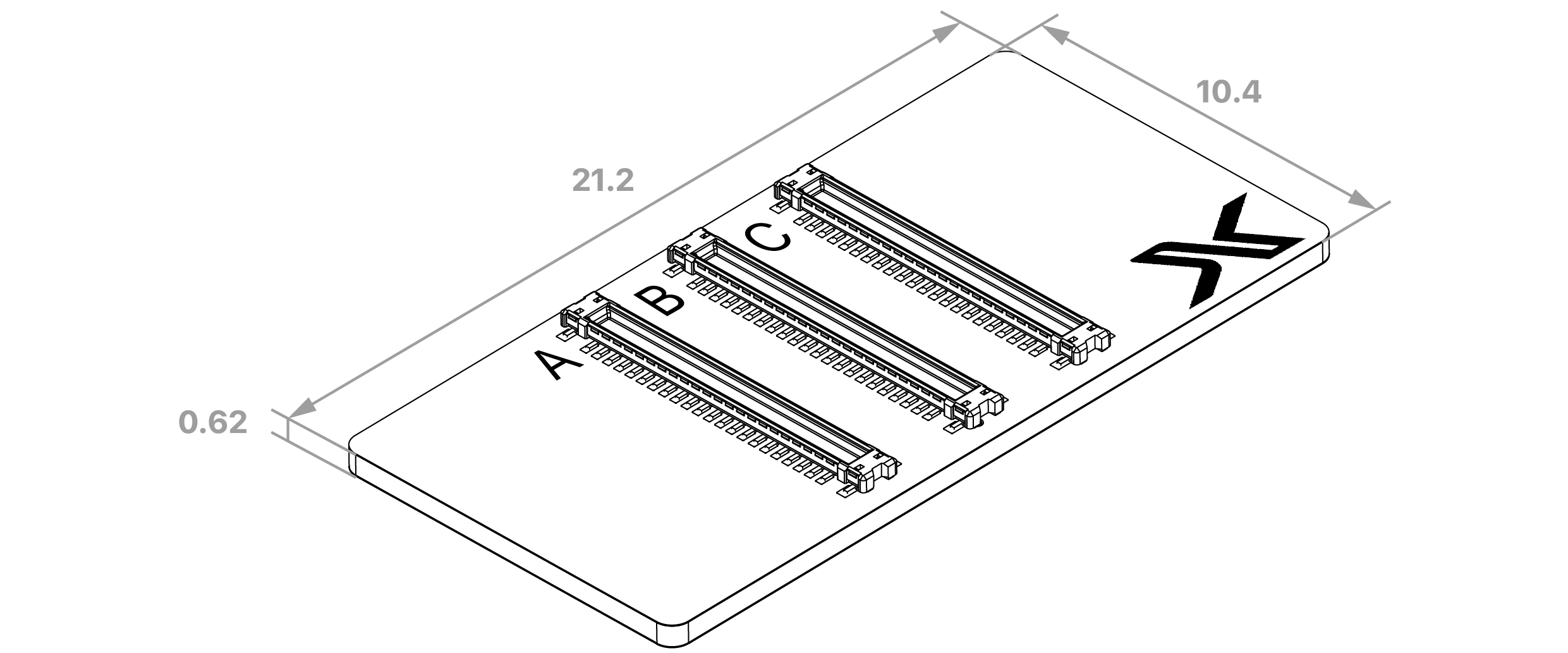

unit: mm




Versions

V1: Identified by 100069 on PCB

text1

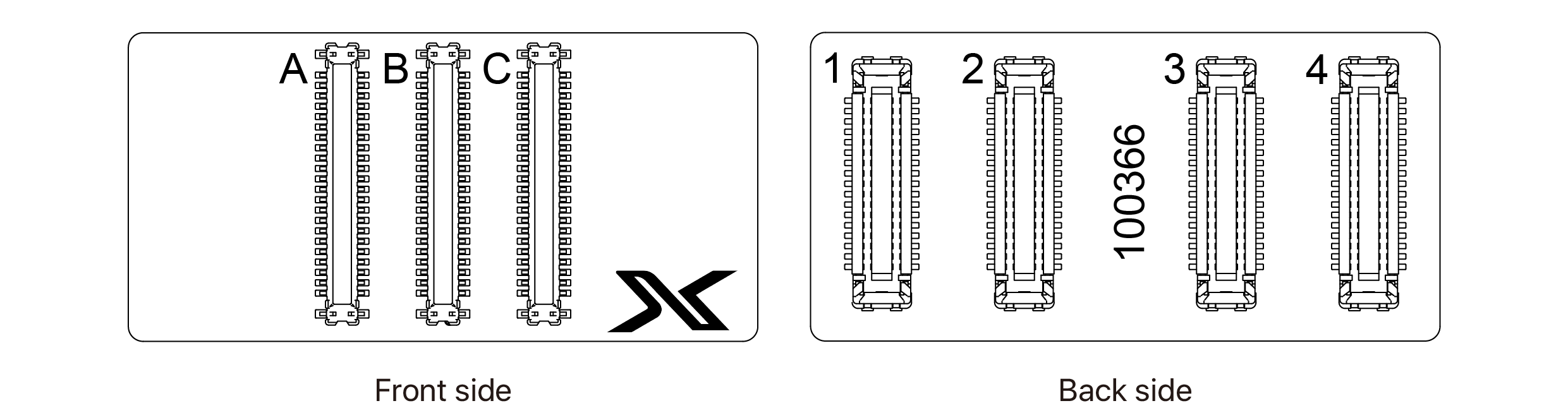

V1.1: Identified by 100366 on PCB

text1




Connector

    Headstage

  • Panasonic PN: AXG244144A

    • Probe

  • Molex PN: 505066-3422

    • Compatibility

  • X6R128 Headstage
  • All X3-series Accessories





Key Features

  • Channel Conversion

    • Converts a single 128-channel X6 interface into two 64-channel X3 input connectors.

  • Accessory Compatibility

    • Supports X3-series accessories, including Omnetics adapters, EIBs, jumper cables, and 64-channel probes.

  • Modular System Integration

    • Allows researchers to use their existing X3 ecosystem with X6-based high-density recording systems.

  • Signal Integrity Preservation

    • Differential routing and controlled impedance help maintain low-noise and high-fidelity recording performance.




    Pin Map

    V1: Identified by 100069 on PCB

    text1

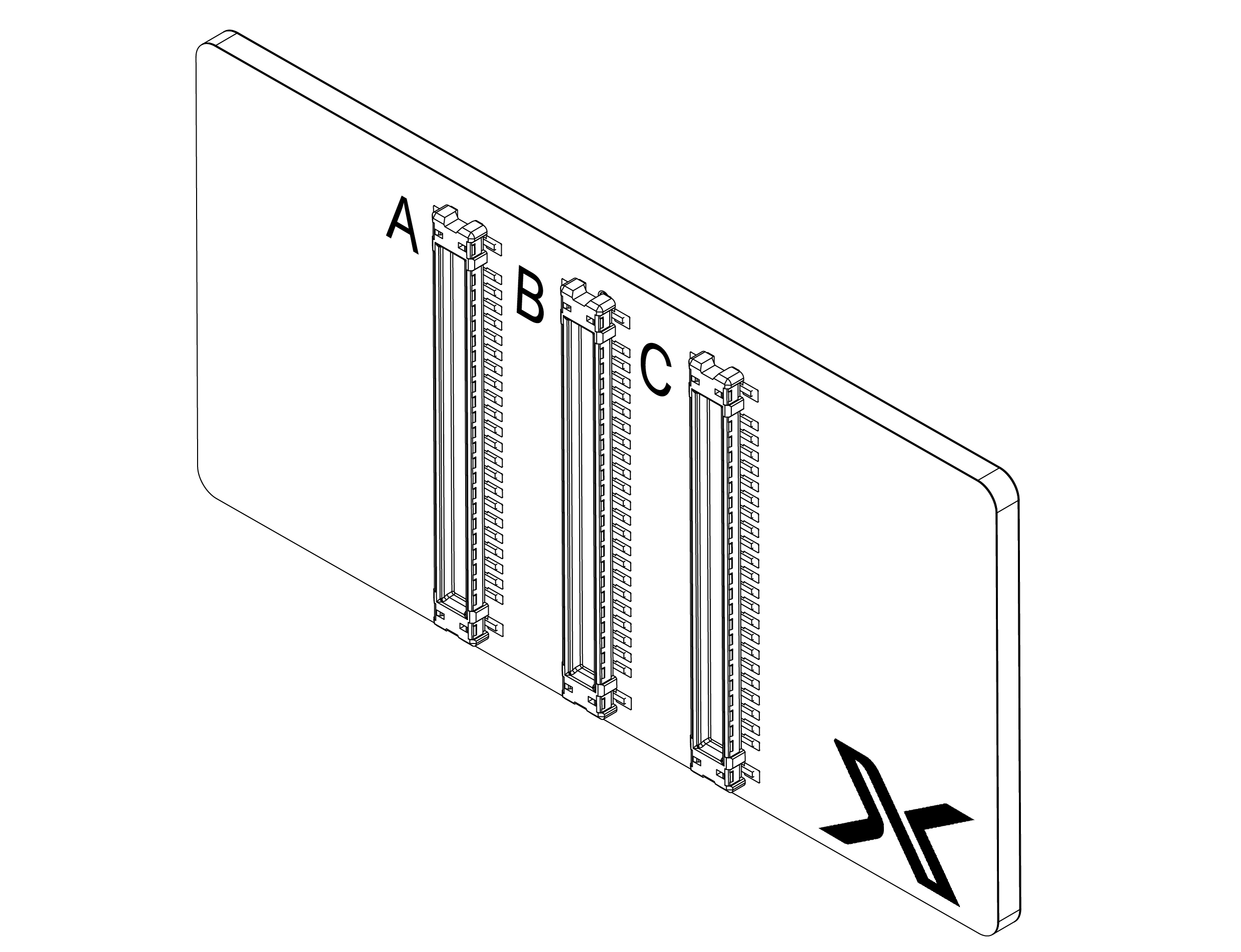

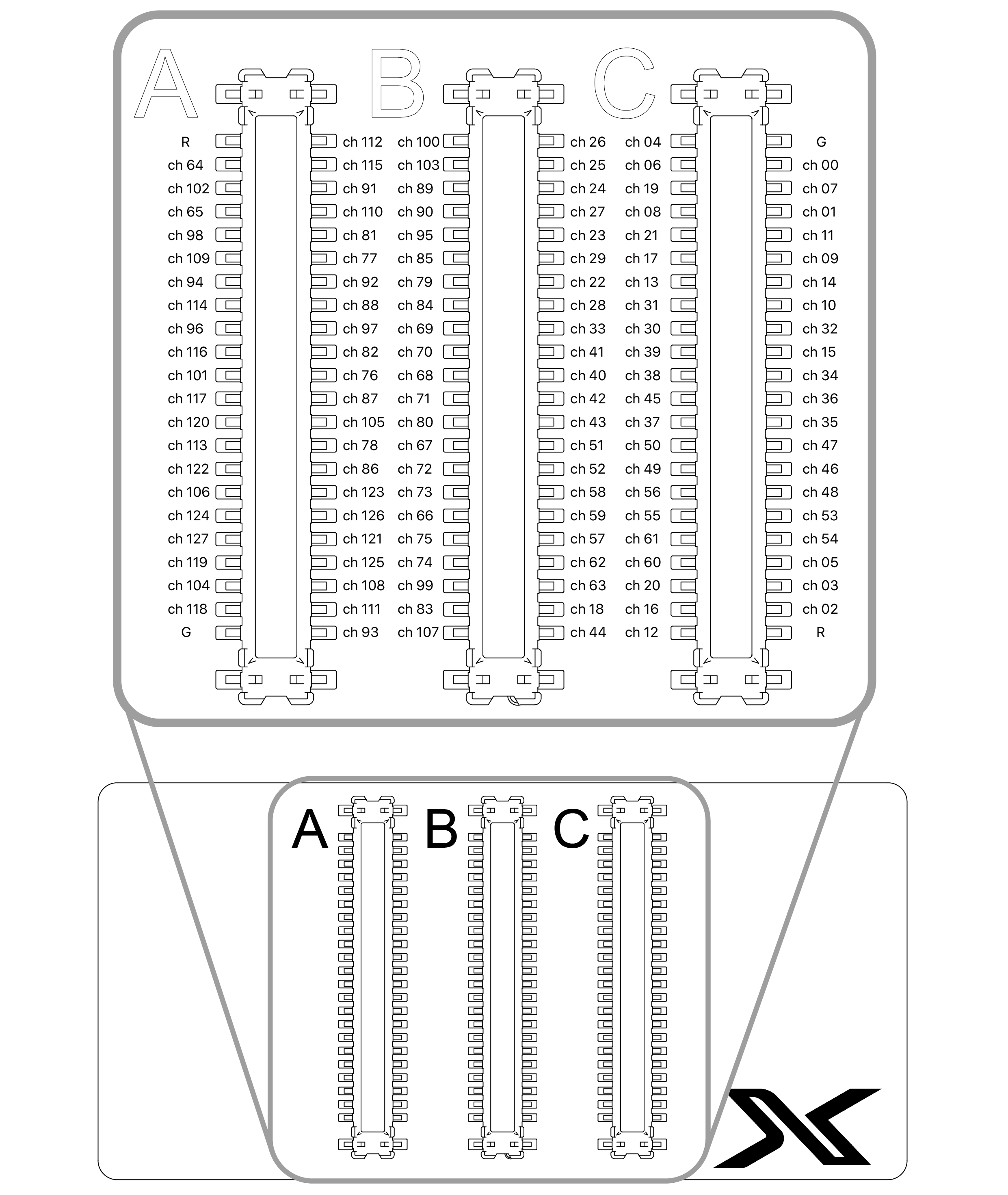

    Headstage side


    text1

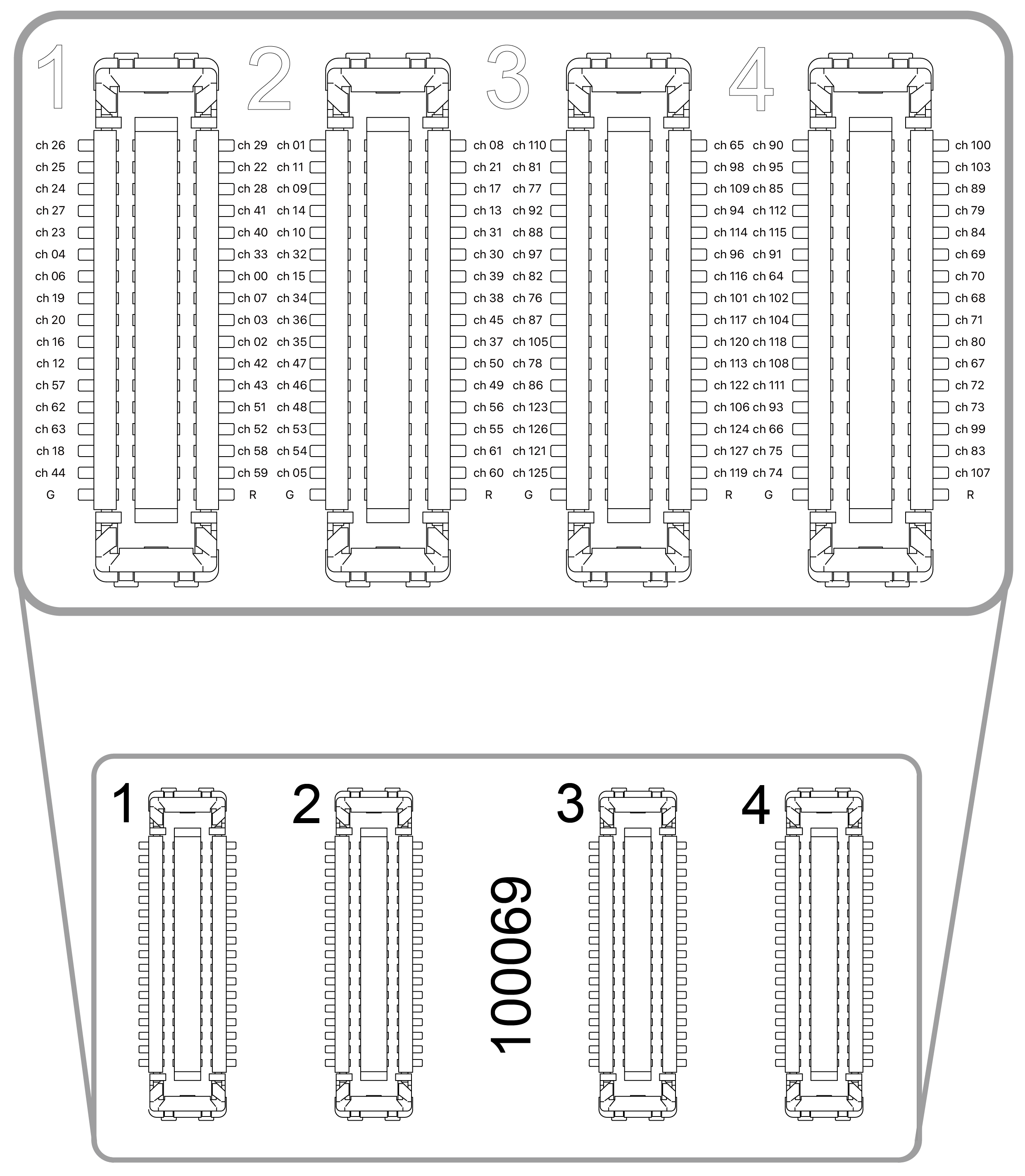

    Probe side




    V1.1: Identified by 100366 on PCB

    text1

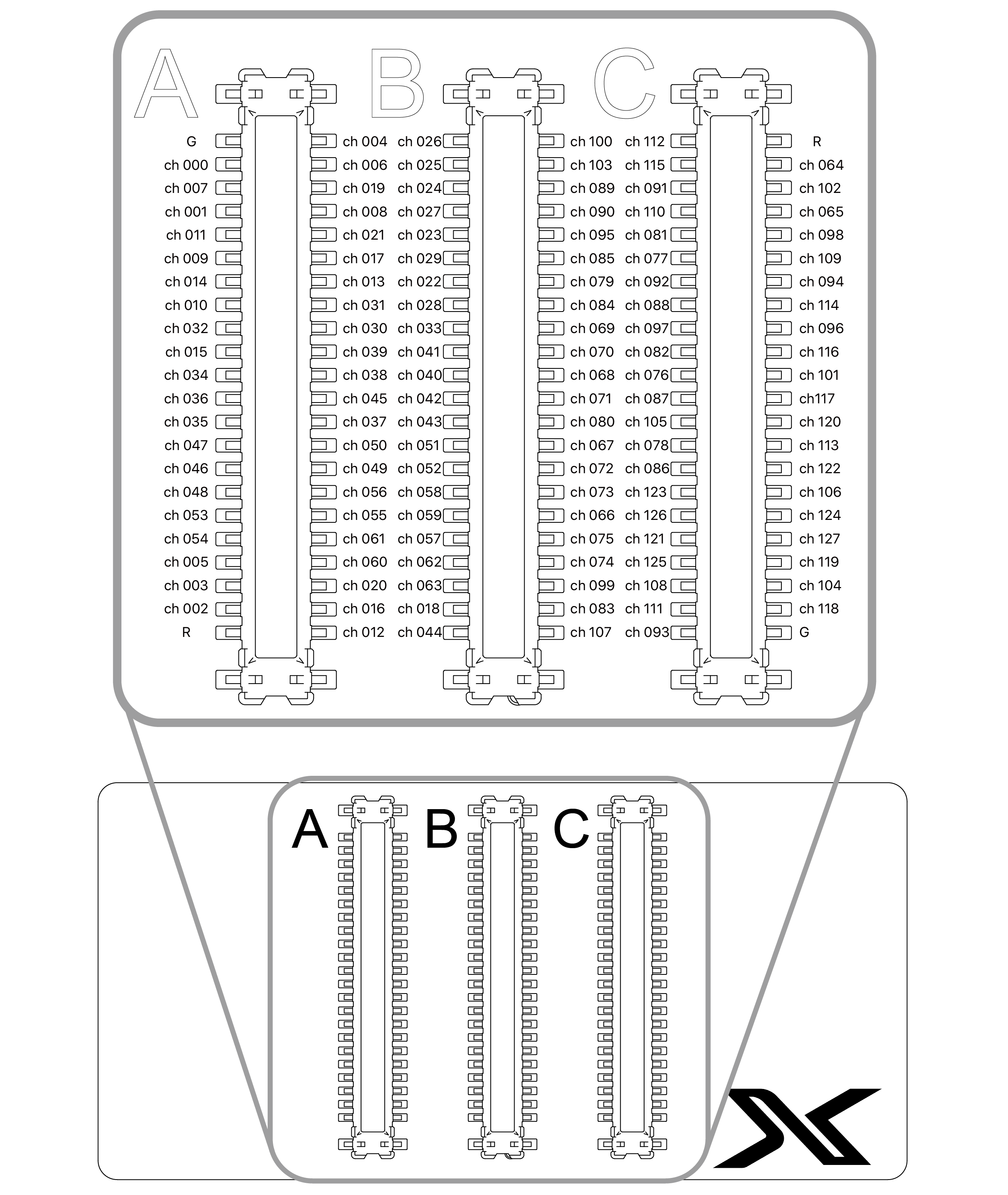

    Headstage side


    text1

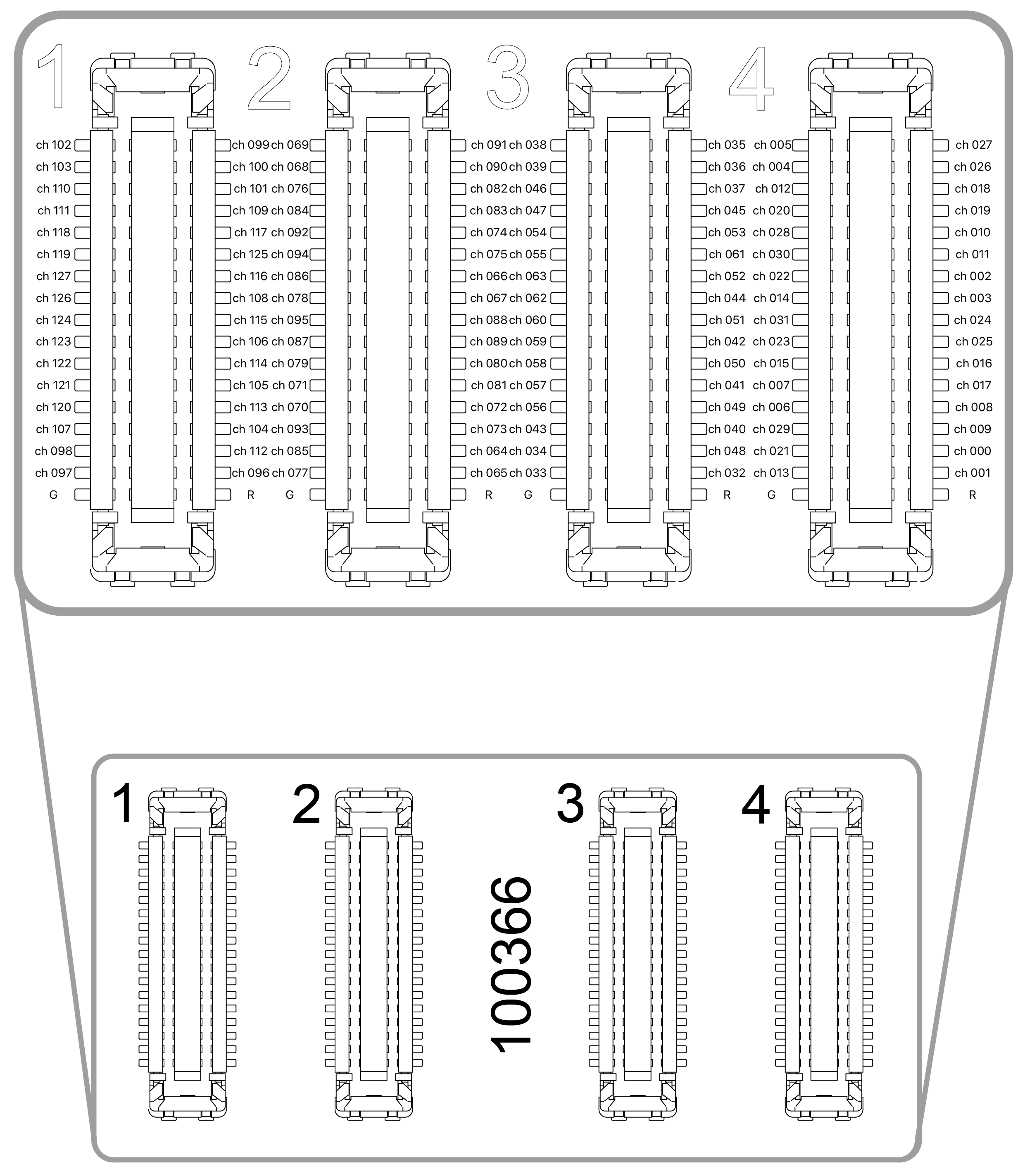

    Probe side
