Fine-Cable Organizer Kit

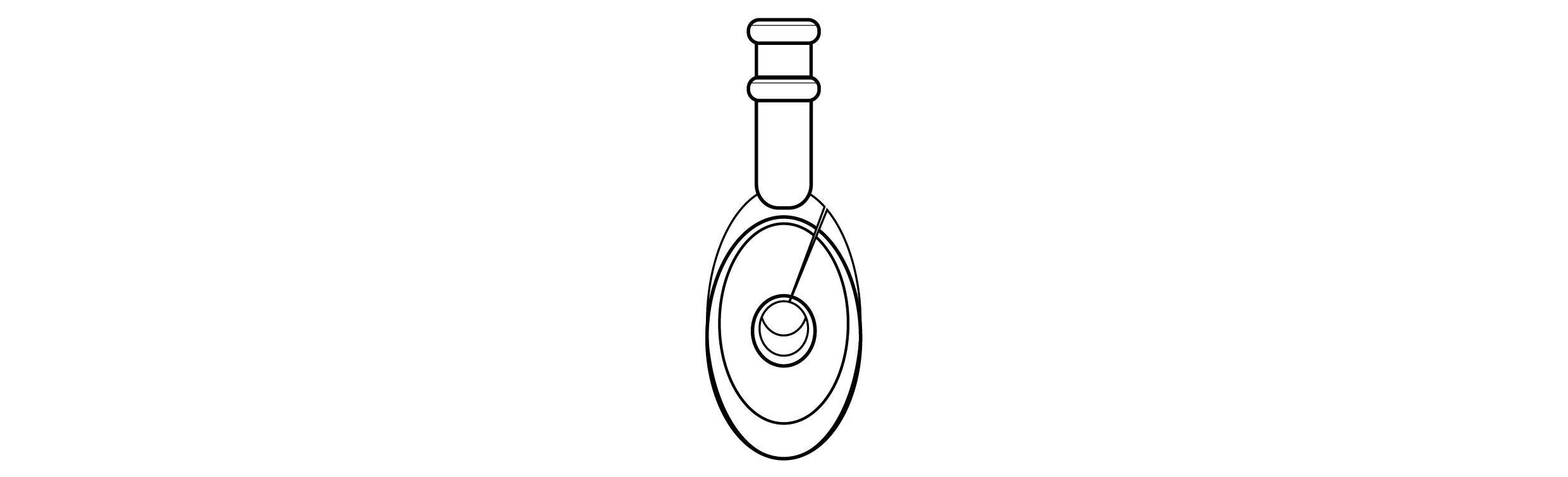

Overview
This accessory allows excess cable length to be neatly stored without wrapping cables around the Commutator’s rotating arm. It helps prevent tangling when multiple fine cables are used simultaneously, improving reliability and ease of setup during experiments.

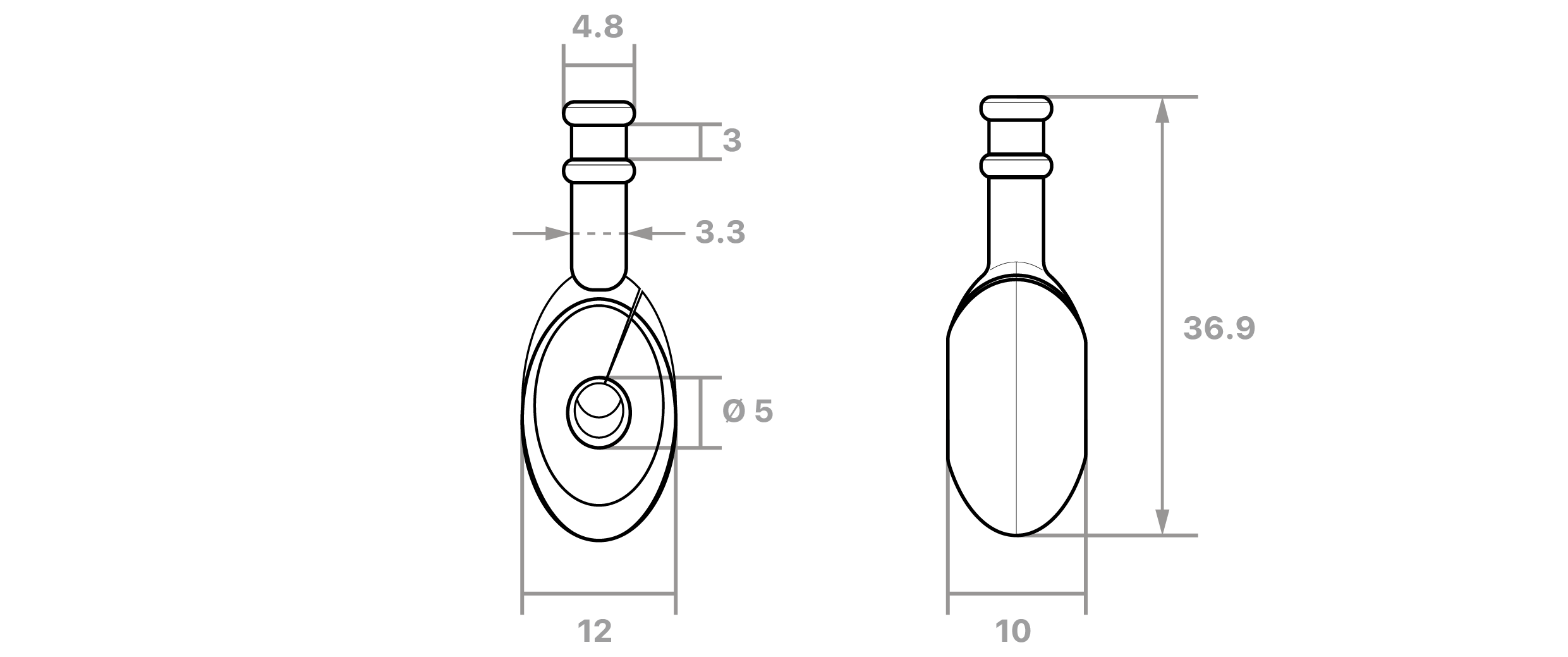

Dimension
unit: mm
Compatibility
- Fine cables with lengths of 1 m / 2.5 m / 5 m.
- Designed specifically for use with Commutator Pro.
Operation
Determine the required cable length based on the experimental setup to allow unrestricted movement.

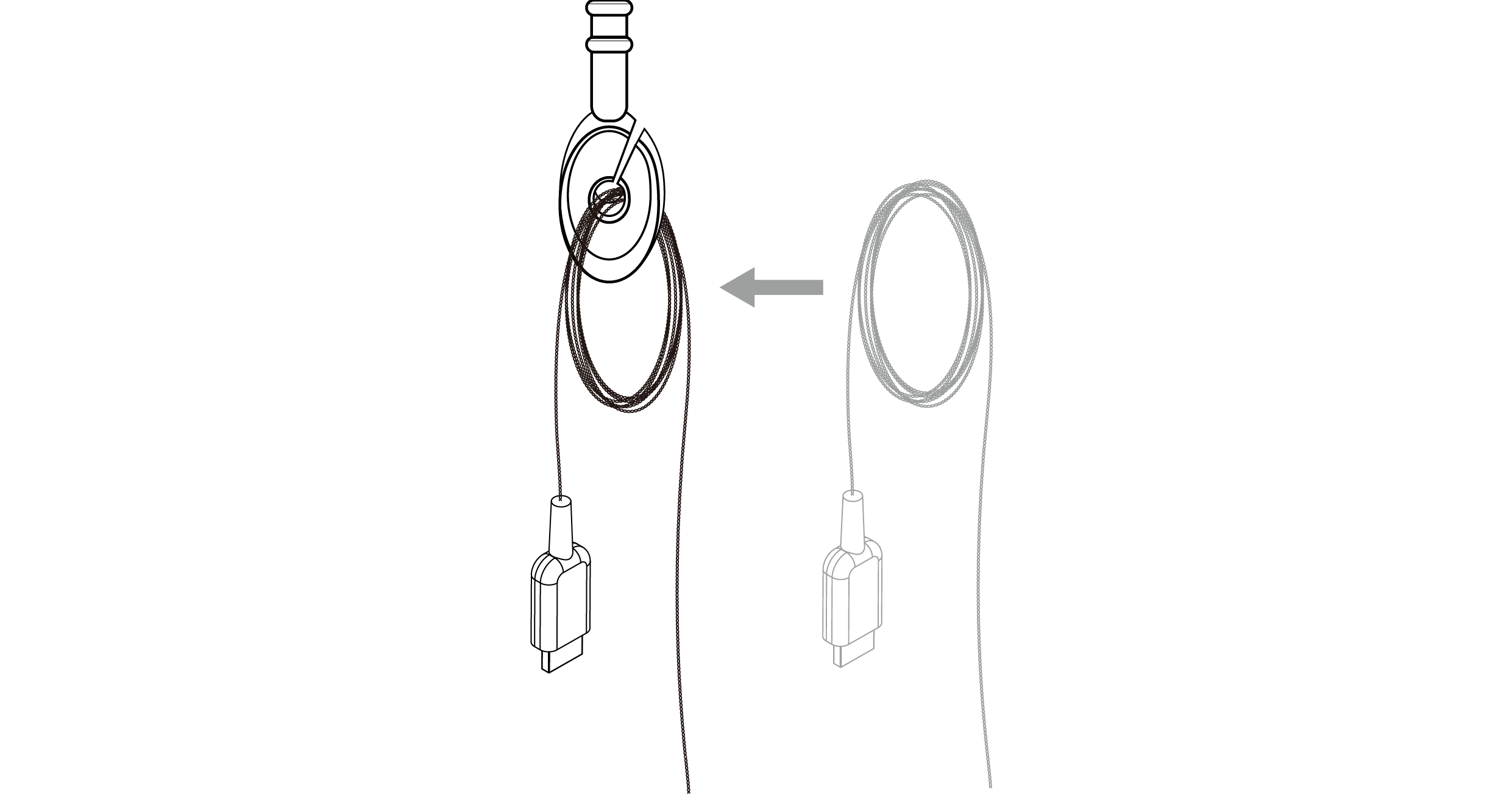

Place any excess cable neatly into the openings of the Fine-Cable Organizer, ensuring smooth routing without sharp bends or twisting.

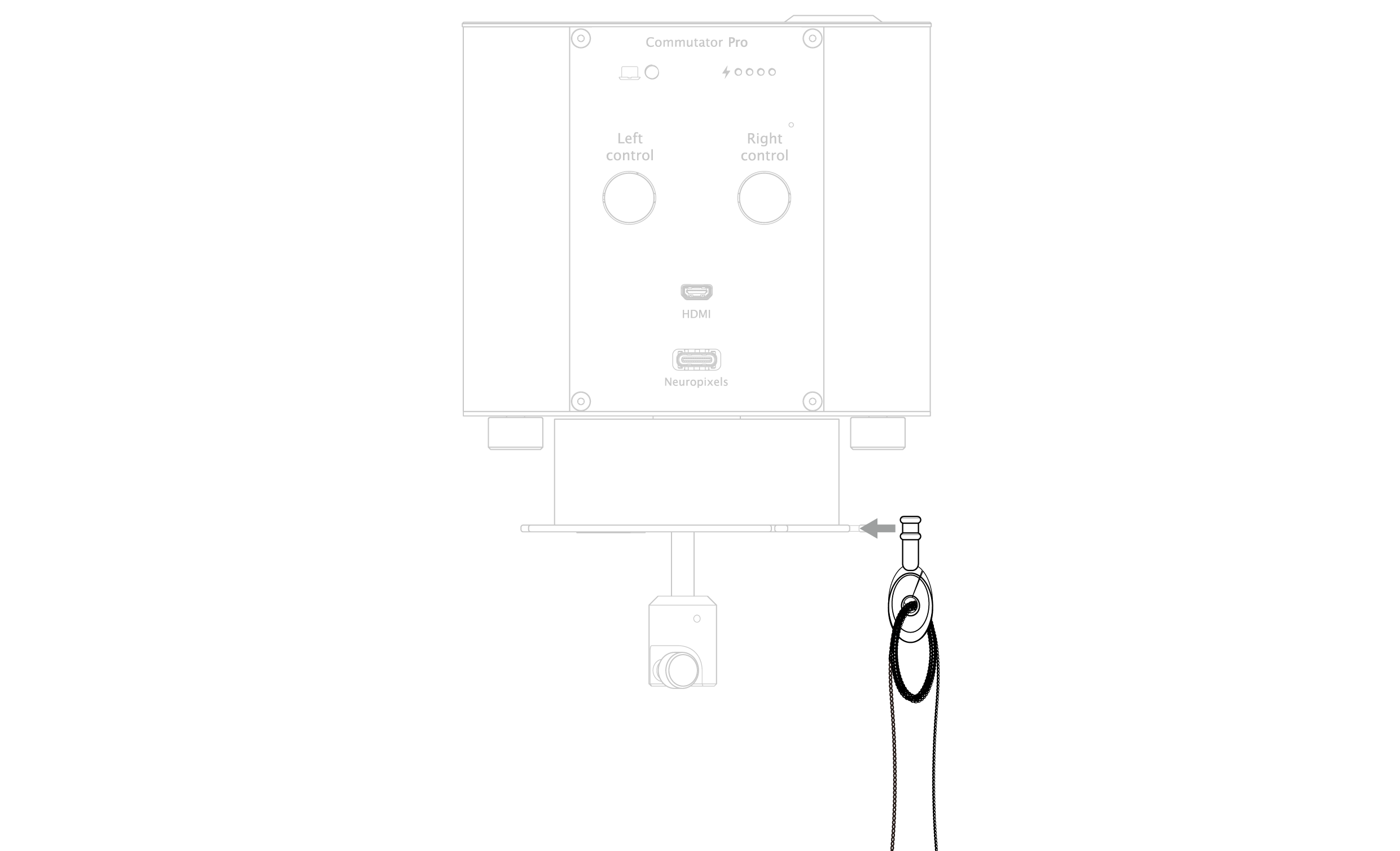

Align the Fine-Cable Organizer with the cable-retention slot on the Commutator Pro rotating arm and press firmly until fully seated.

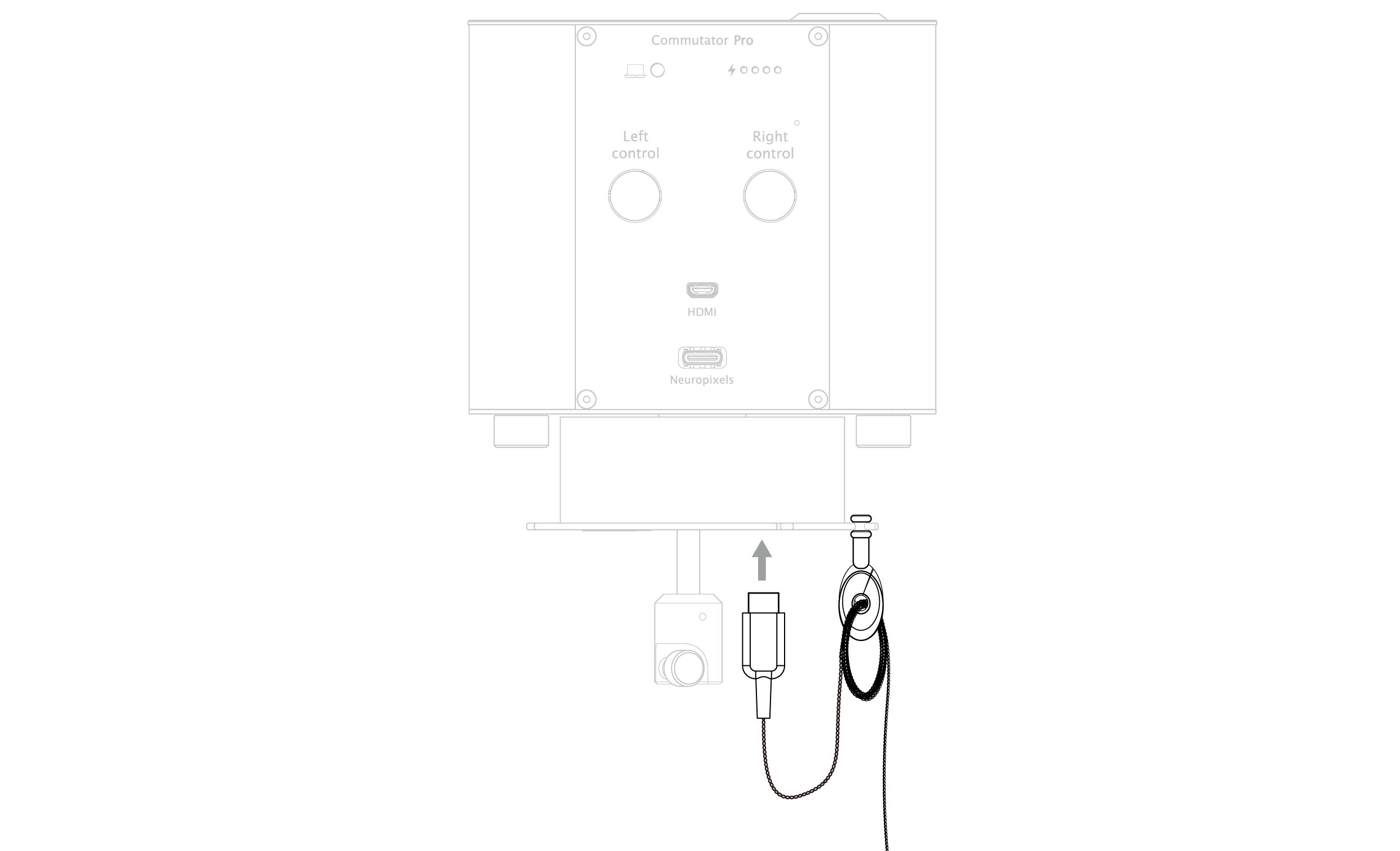

Insert the cable connector into the corresponding port on the Commutator Pro.

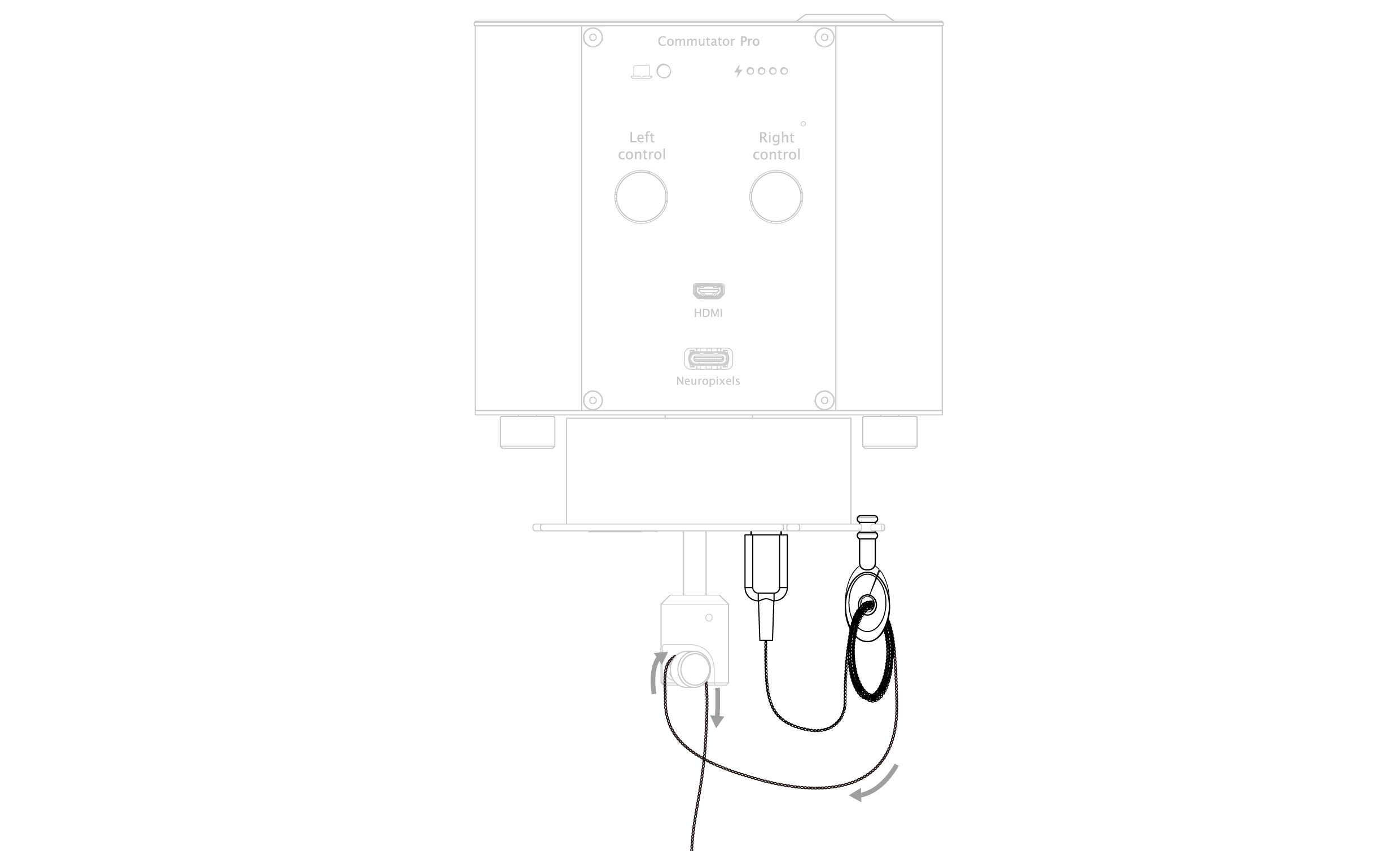

Route and secure the opposite end of the cable using the Commutator Pro cable-clamping mechanism, following standard installation guidelines.
⚠ IMPORTANT: Ensure the Fine-Cable Organizer Kit is securely mounted to the Commutator Pro with no looseness during rotation, and verify that all cables are firmly clamped and resistant to accidental pullout.

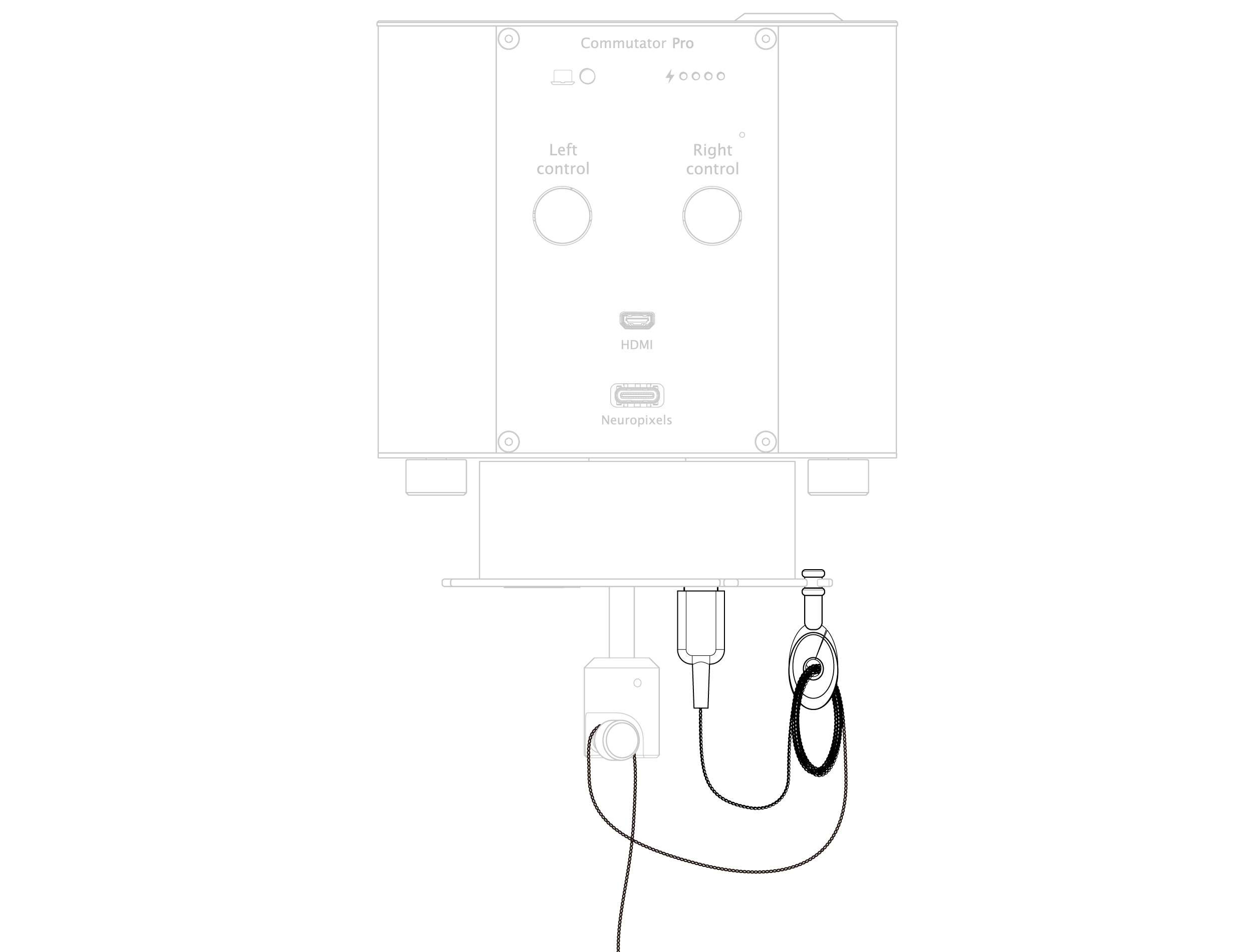

NOTE: Always secure any excess cable firmly into the integrated screw clips on the commutator as illustrated. To ensure maximum stability and prevent the tether from being accidentally pulled or strained during vigorous animal activity, it is highly recommended to pair your setup with the Fine-Cable Organizer Kit.
Proper anchoring eliminates cable tension, maintains unhindered rotation, and ensures optimal tracking sensitivity.
⚠ IMPORTANT: Ensure that all tether cables are securely routed and fastened through the integrated screw clips. Failure to properly anchor the cables may result in accidental disconnection or tether dislodgement during experimental procedures.
